What is the hinge of the wooden door?

Five accessory manufacturers tell you what is the letter hinge of the wooden door?

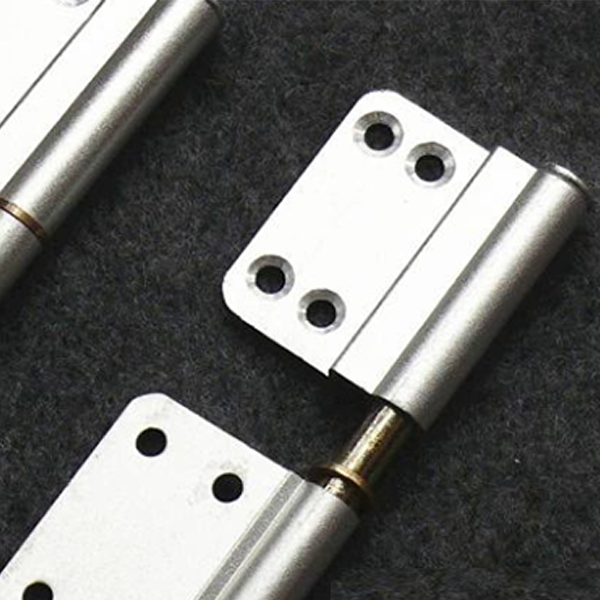

First, what is the mother-in-law hinge

The mother-in-law hinge is usually made of stainless steel, iron, and copper. The main body includes a hinge piece and a hinge shaft. The main feature is that the hinge piece is divided into a sub-page and a mother page, and the sub-page and the mother page are loaded. On the hinge shaft and forming the hinge joint, all in the same tangential direction of the hinge axis, the sub-sheet is shaped like a part of the 'skull' of the mother page, the sub-page can be rotated 360° around the central axis, and can be fitted Into the mother page, constitute a good page. There are holes on the sub-page and the mother page, and the door and the door frame can be fixed by the device screw to reach the normal opening and closing, and the closing effect is achieved. The hinge of the mother and child is suitable for the center, the shallow depth and the side of the door frame. It is not necessary to remove the hinged part of the door leaf (slotted) like the hinged hinge . The gap between the door frame and the door leaf is reasonable and does not damage all the beautiful effects. The device is convenient and convenient. The price of the parent-child hinge is only 3/5 of the general hinge. Due to the above characteristics, it is more and more popular with customers.

Structure of the child and child hinge

The finished child hinge contains 6 parts:

1. hinge inside piece (one piece, four screw holes)

2. hinge outer sheet (one piece, four screw holes)

3. Central (two)

4. Axis core (one)

5. Hat head (two)

6. Screws (8 pieces)

Second, the characteristics of the child hinge

If the flat hinge is better than the mother hinge in terms of durability, since the length of the parent hinge is the same as the length of the general hinge, the inner and outer sheets of the parent hinge are overlapped. The effect is that the inner page is reduced, and the outer piece is hollowed out. From this point of view, the durability is not comparable to the flat hinge with two intact pages, and the scrolling and bearing weight of the hinge are many times. Depending on the middle ring, the degree of wear resistance of the middle ring and the degree of closure of the middle axis directly determine the bearing capacity of the hinge. The hinges are usually four central rings, and the mothers are two. From this point, it is also the mother. The durability of the hinge is lower than that of the flat hinge.

From the convenience of use and the adaptability to the door, the hinge of the mother and child undoubtedly has a certain advantage. The larger selling point of the hinge of the mother-in-law is easy to use, because it is relatively open and hinged, it does not have to be opened. The trough directly reduces the damage to the door, greatly enhances the beauty of the door, and more importantly, some non-solid wood doors (composites) or hollow wooden doors, the bottom can not bear the slot, forced slotted to open and close After a period of time, there may be serious quality problems such as falling of the door leaf and perforation of the door leaf, and the common planning of the factor mother hinge is free of slotting and direct installation, which enhances the integrity of the door and greatly enhances the hinge. Applicability of various types of interior doors.

Third, the difference between the parent and child hinges and the general hinge

In terms of durability, the general hinge is better than the parent hinge, because the length of the parent hinge and the length of the general hinge are the same, but the inner and outer sheets of the parent hinge have to be overlapped. In this way, the inner page is reduced, and the outer piece is hollowed out. From this point of view, the durability is relatively inferior to the general hinge with two perfect pages, and the scrolling and bearing weight of the hinge depends on the middle. The degree of wear resistance of the middle ring and the degree of closure of the middle axis directly determine the bearing capacity of the hinge. The general hinges are usually 4 middle rings, and the mothers are two. From this point, it is also the durability of the mother and child hinges. The reason for the difference in the general hinge.

From the convenience of use and the adaptability of the door, the hinge of the mother and the child undoubtedly has a certain advantage. The larger selling point of the mother-in-law hinge is convenient to use, because it is relatively uncompressed with the device of the general hinge. It directly reduces the damage to the door, greatly enhances the beauty of the door, and more importantly, some non-solid wood doors (composites) or hollow wooden doors, the bottom can not bear the slot, forced to open the general hinge, After a period of time, there may be serious quality problems such as falling of the door leaf and perforation of the door leaf, and the common planning of the factor mother hinge is free of slotting and direct installation, which enhances the integrity of the door and greatly enhances the hinges. The suitability of the type of inner door.

Fourth, the mother-in-law hinge how to install

There are three time division devices for the hinge of the device to make the weight of the hinge. It is suitable for centering, deepening and leaning on the door frame. It can also avoid the direct device of slotting, enhance the integrity of the door, and greatly enhance the applicability of the hinge to the door. The three-stage hinge device is selected in the middle. The hinges are slightly up, and the advantage of using this type of device is quite stable, and the force of the door frame on the door is better.

Assembling the mother and child hinges

At the fixed end of the hinge of the mother and child, screw the upper screw. The hinge of the mother and child is divided into a fixed end and a door end. The fixed end needs to be screwed in front of the device, and then the inner end angle wrench is used to fix the screw. Close to the ground or maybe on the wall.

Fixed mother-in-law hinge on the ground

Use a small internal angle to screw the screw. This is a fine work experience. After experiencing the procedure of recognizing the orientation, punching, and assembling, the next work is the fixed end of the ground device, and the attached internal angle gadget. Tighten the screws on the fixed end and the hinges are automatically installed.

Acknowledge the orientation of the door terminal hinge

The hinge end of the door on the door can be screwed only. The fixed end of the hinge light device is still useless. The device on the door is also good. The key point is the positioning of the door. The method is to first open the door. Open to a larger size, then find the exact orientation on the door and screw the door terminal mat.

Fine-tuning the mother hinge

Fine-tune the viewpoint of the fixed end of the parent hinge, and then tighten it. The end step of the parent hinge device is fine-tuning. Rotate the viewpoint of the hinge of the mother-in-law to make it fit with the hinge of the door terminal, and then tighten the screw.
