Do you know the type of hinge?

Hinge manufacturers tell you the hinge classification

The hinges in furniture hardware accessories occupy an important position! The quality of the hinge is directly related to the use of furniture and doors.

Common classification

1. According to the type of base, it is divided into two types: detachable type and fixed type;

2, according to the type of arm body is divided into: slide-in and card-type;

3. According to the orientation of the door panel, it is divided into a full cover (straight bend, straight arm), a general cover of 18%, a half cover (medium bend, curved arm) cover of 9 centimetres, and the built-in (large bend, Daqu) door panel is completely hidden inside;

4, according to the style of the development stage of the hinge is divided into: a length of force hinge, two-stage force hinge, hydraulic buffer hinge, touch self-opening hinge, etc.;

5, according to the hinge of the opening point of view points: generally used 95-110 degrees, especially 25 degrees, 30 degrees, 45 degrees, 135 degrees, 165 degrees, 180 degrees, etc.;

6, according to the type of hinge is divided into: general one or two-stage force hinge, short arm hinge, 26 cup miniature hinge, marble hinge, aluminum frame door hinge, special view hinge, glass hinge, rebound hinge, American hinge , damping hinge , thick door hinges, etc.

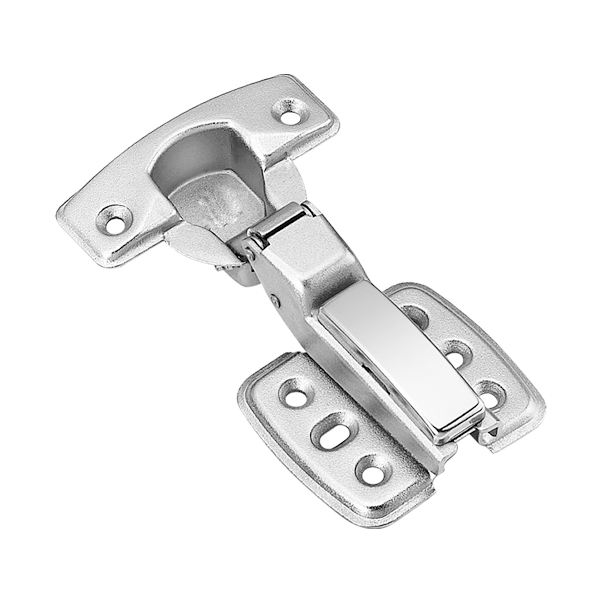

Spring hinge

Mainly used for cabinet doors, wardrobe doors, it generally requires a plate thickness of 18-20mm. From the material, it can be divided into: galvanized iron, zinc alloy. From the function point of view, it can be divided into two types: need to punch holes, no need to punch holes. Without a hole, it is what we call a bridge hinge. The bridge hinge looks like a bridge, so it is commonly called bridge hinge. It features no holes in the door panel and is not subject to style constraints. The standards are: small, medium, large. Need to make holes, it is the spring hinges commonly used in cabinet doors. Its characteristics: the door panel must be punched, the style of the door is bound by the hinge, the door will not be blown away after the door is closed, no need to install a variety of touch spiders. The standards are: &26, &35. Among them are detachable directional hinges and non-detachable non-directional hinges. For example, the 303 series of the Longsheng hinge is a detachable directional hinge, while the 204 series is a detachable spring hinge that can be divided in shape: a full cover (or straight arm, straight bend) half cover (or a curved arm) , the middle bend (or the big curved, big curved) hinge with a conditioning screw, can adjust the height and thickness of the plate up and down, left and right, the two screws fixed hole spacing on the hole is generally 32mm, the diameter side and the plate are spaced at both ends It is 4mm (painting). In addition, the spring hinges have various special standards, such as an inner 45 degree angle hinge, an outer 135 degree angle hinge, and an open 175 degree angle hinge.

The difference between the three hinges of the right angle (straight arm), half bend (half bend), and big bend (big song):

Right angle hinges allow the door to block the side panels;

A half-bent hinge allows the door panel to cover part of the side panels;

Large curved hinges allow the door panel to be parallel to the side panels.

Gate hinge

It is divided into general type and bearing type. The general type has already been mentioned above. The bearing type can be divided into copper and stainless steel. From the standard: 100X75 125X75 150X90 100X100 125X100 150X100 thickness 2.5mm, 3mm bearing has two bearings, four bearings. From the point of view of consumption, the use of copper bearing hinges is more, because its style is beautiful, bright, affordable, and equipped with screws.

Electromechanical cabinet hinge

It contains nylon hinge with high wear resistance; corrosion resistant, high strength zinc alloy hinge, hinge; corrosion resistant, oxidation resistant, high strength stainless steel hinge, often used in electromechanical cabinet doors, mechanical equipment operation boxes, etc. .

Heavy hinge

Due to the special orientation of the installation, the requirements for the hinge are also very large. The general size is above 150MM, the bearing capacity is large, and the outer structure fits the special structure of the cabinet door. It is often used for large doors such as refrigerators and freezers, mostly zinc. Alloy material.

Shaped hinge

It is also a corner hinge, and the door opening point is large, and it is also widely used in daily use.

Other hinges

There are countertop hinges, hinged hinges and glass hinges. The glass hinge is used to install the frameless glass cabinet door, and the thickness of the glass is required to be no more than 5-6 mm. The style has holes and spring hinges. The holes are magnetic and top and bottom.
